Power terminal On
On POS, Use latest version of Linkly - For existing install use upgrade, for new, use new install.
Once installed, Check POS Ethernet connection IP via Command prompt using “ipconfig” enter
Ensure POS x Pinpad are plugged into the same live network , pinpad will show <--> Symbol in task bar to show Ethernet is plugged in.
Linkly Client IP and POS incoming Ethernet IP Should match

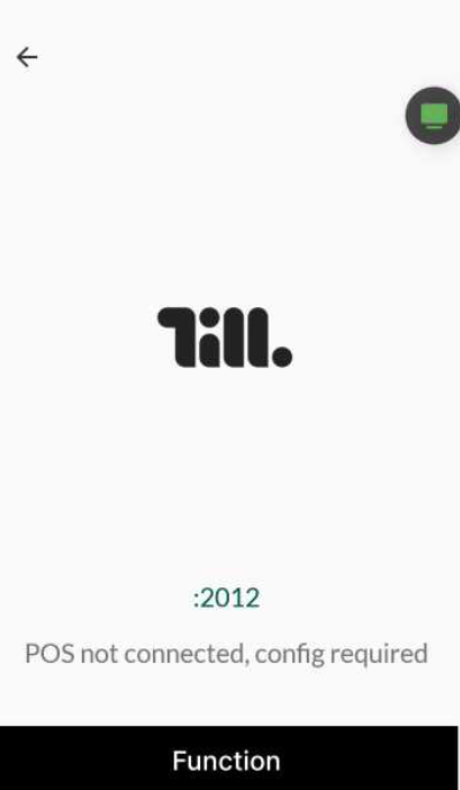

On Terminal payments/pos connect screen, select POS Connect

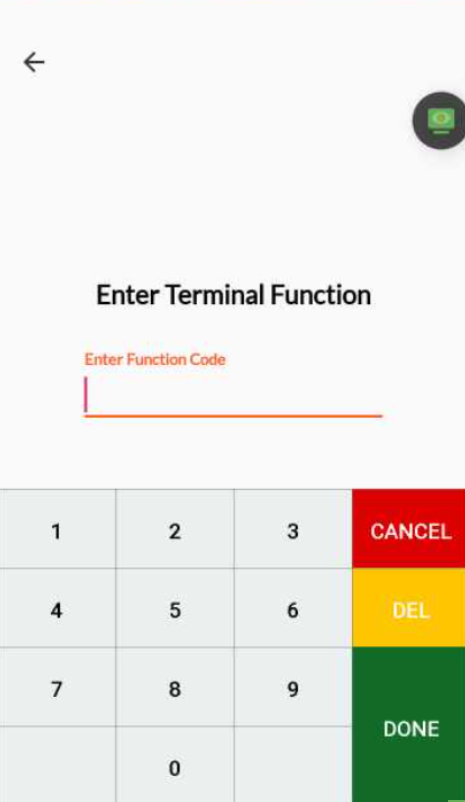

Select function, function code, 11112227

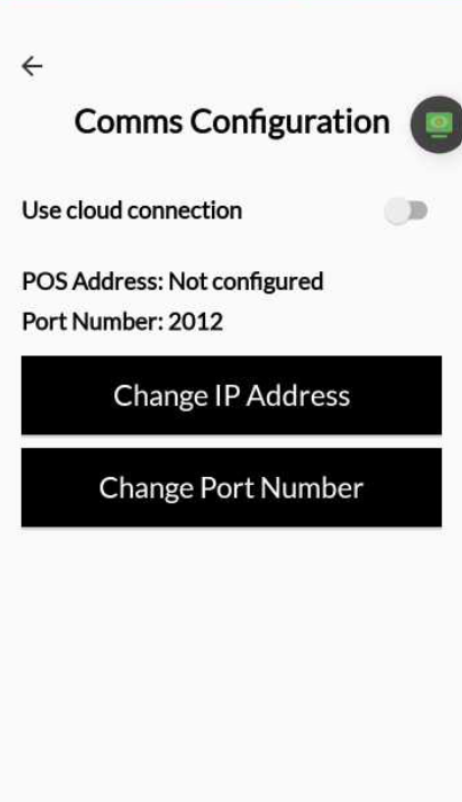

Select Change IP address q

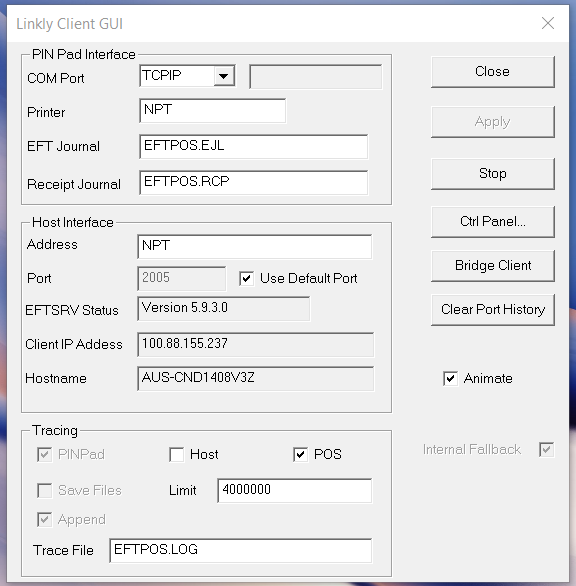

Enter IP address per Linkly Client
Go back via arrow, Terminal should show “ Pos Connected “

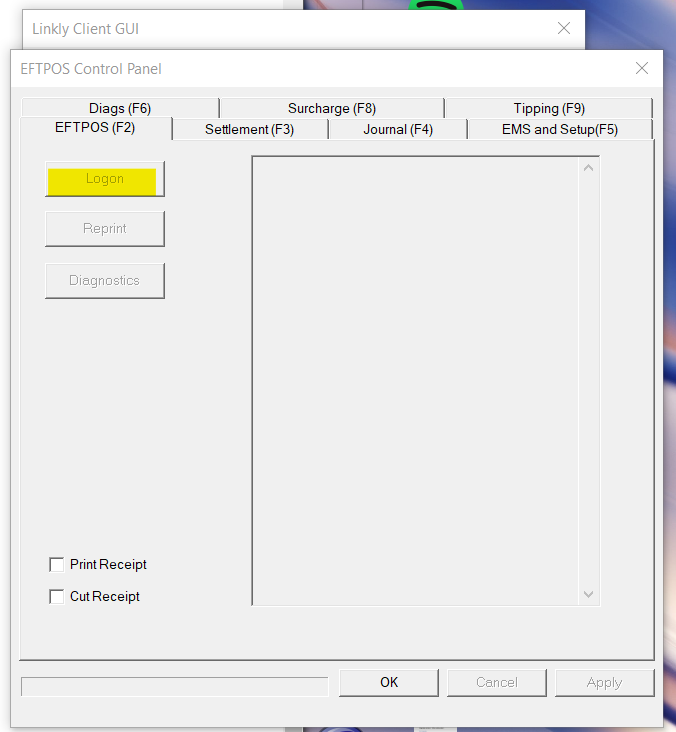

Perform log on from Linkly control Panel
Notes:
to ensure linkly client is showing the correct IP, use command prompt in windows, enter “ ipconfig” enter, here you will find the POS incoming IP.
Ensure Firewall is Off
If Firewall Cannot be turned off, ensure to set rules in and out for PORT 2012 - if you are unsure how to do this ask P+L or the field techs.
Ensure the PORT is not changed in Linkly client, have “ use default “ checked
If the Terminal is NOT on the same ETH Network as the POS - it will not pair/integrate.
Do not use Linkly Lite - If the POS has Lite or an older version, update and re run the wizard.
