Power terminal On
On POS, Use latest version of Linkly - For existing install use upgrade, for new, use new instal.
Once installed, Check POS Ethernet connection IP via Command prompt using “ipconfig” enter
Ensure POS connection and terminal wifi are on the same network

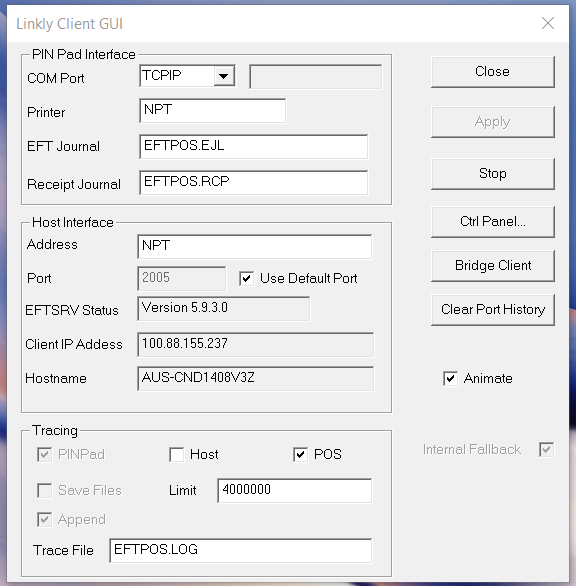

Linkly Client IP and POS IP Should match.

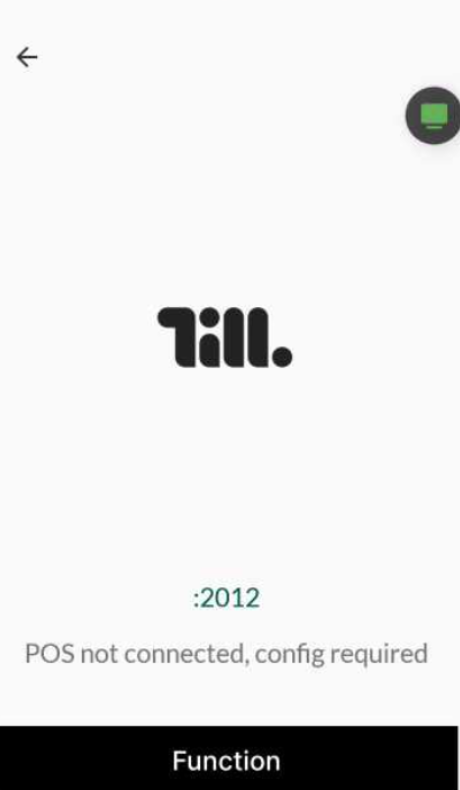

On Terminal payments/pos connect screen, select POS Connect
Select function, function code, 11112227

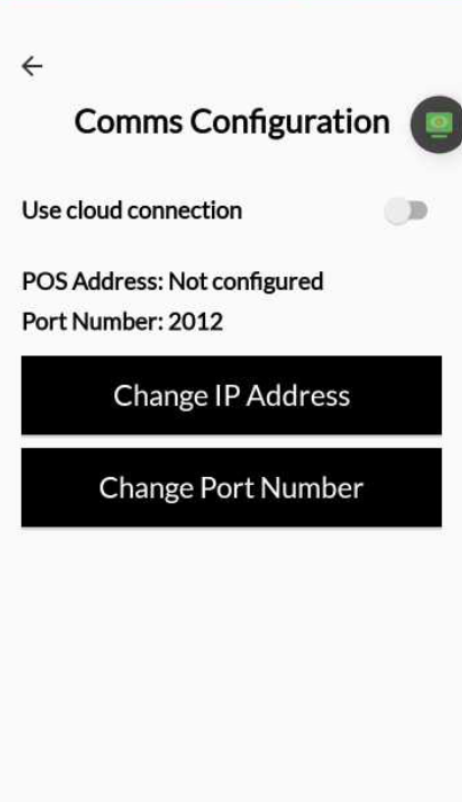

Select Change IP address
Enter IP address per Linkly Client
Go back via arrow, Terminal should show “ Pos Connected “
Perform log on from Linkly control Panel
Notes:
to ensure linkly client is showing the correct IP, use command prompt in windows, enter “ ipconfig” enter, here you will find the POS incoming IP.
Ensure Firewall is Off
If Firewall Cannot be turned off, ensure to set rules in and out for PORT 2012 - if you are unsure how to do this ask P+L or the field techs.
Ensure the PORT is not changed in Linkly client, have “ use default “ checked
If the Terminal is NOT on the same Wifi Network as the POS - it will not pair/integrate.
Do not use Linkly Lite - upgrade to or install latest version.
