How to rerun Configuration Wizard on an Integrated Ingenico Move5000



Have more questions? Submit a request

Please follow the steps below to rerun the Configuration Wizard to change the primary communication on the integrated Ingenico Move5000 sim card or resolve any Linkly issues.



Program Files

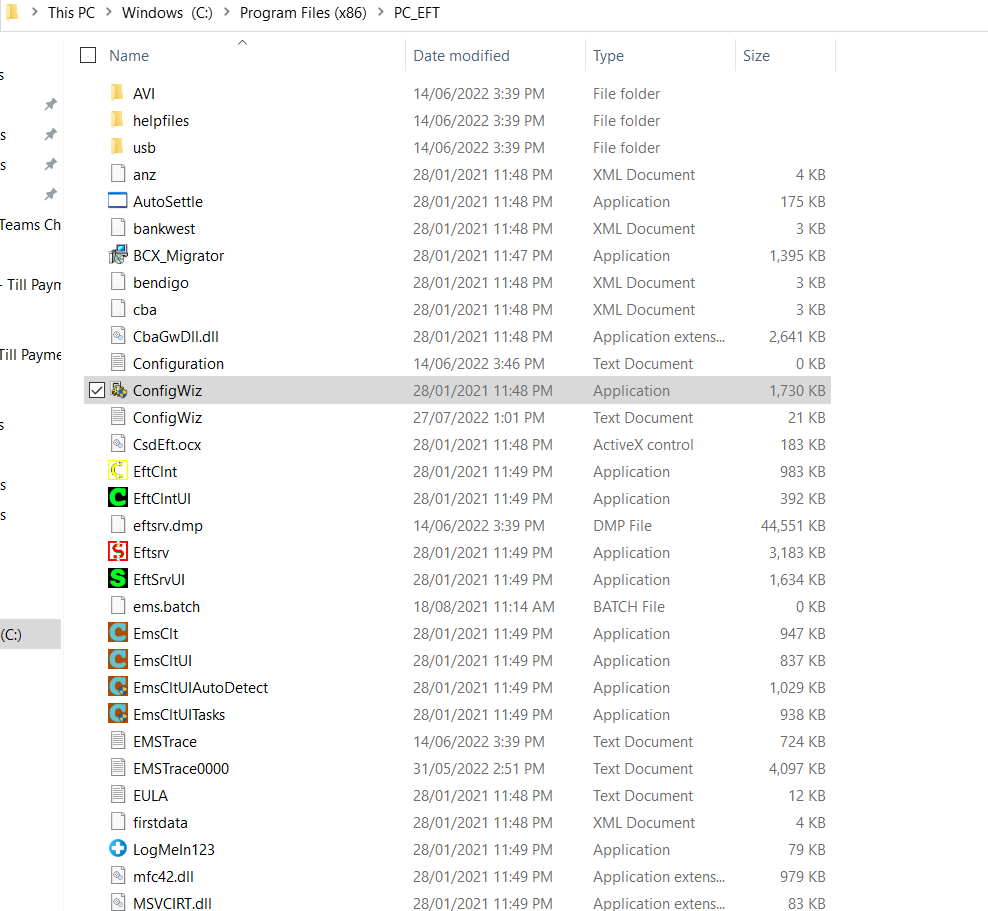

The Default location of the Configuration Wizard is in C:\Program Files (x86)\PC_EFT. The file is labeled ConfigWiz.


ConfigWiz.exe

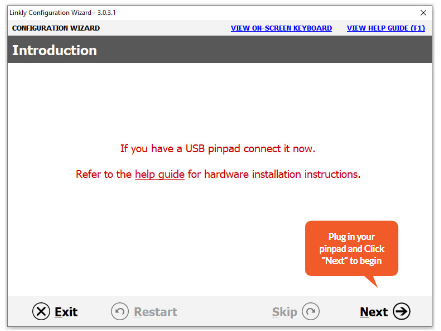

Follow the instructions to set up the terminal again.




Serial Cable

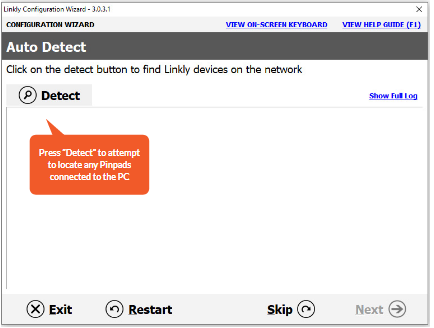

If your Ingenico Move5000 is integrated with a serial cable, press Detect. If it is USB-integrated, press Skip at the bottom of the screen.

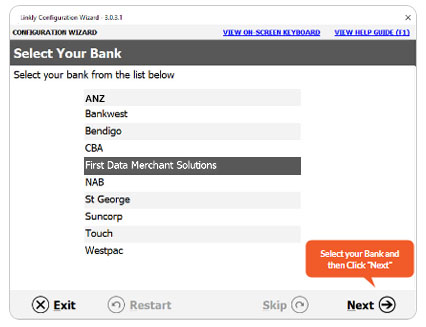

Select Your Bank

Select First Data Merchant Solutions and press Next.

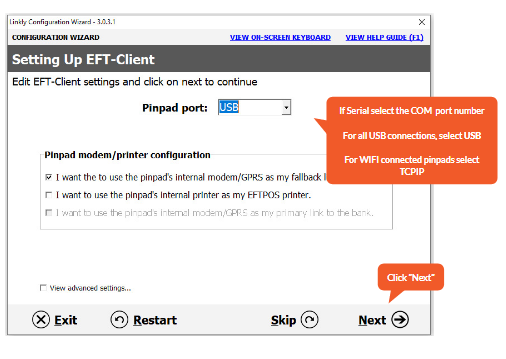

Setting up EFT-Client

If it is USB-integrated, change the port name to Ingenico.


If you want to use the internet from POS, leave the top box ticked on PIN pad modem/printer configuration. If you want to use a mobile network, untick the top box and select the bottom box. Then press Next.

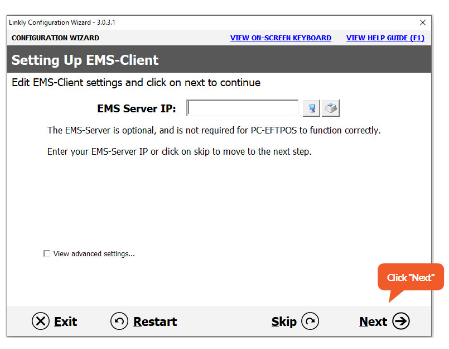

Setting up EMS-Client

Press Next.

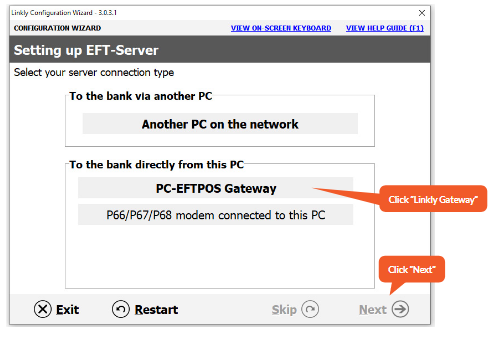

Setting up EFT-Server
If the POS is not connected to another computer (such as a back office computer), click PC-EFTPOS Gateway (Linkly Gateway), and press Next.

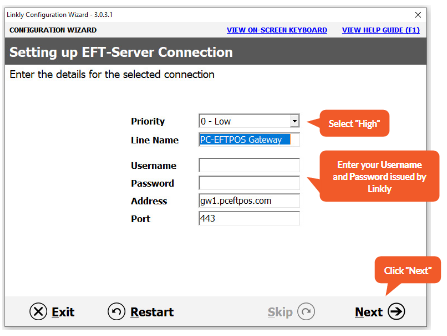

Setting up EFT-Server Connection
 In Priority select High, then enter the Username and Password provided by Linkly, and click Next.

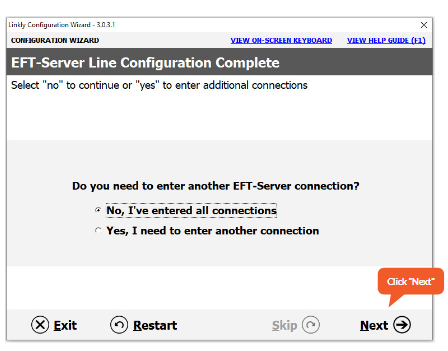

EFT-Server Line Configuration Complete
Select No, I've entered all connections and press Next.


Rerun Configuration Wizard complete
